AnyPCBA – Professional PCB Layout Services
We specialize in high-speed PCB design, signal integrity (SI), power integrity (PI), and EMC analysis. Our team of over 100 full-time engineers serves 3,000+ clients worldwide.
What we offer:
Footprint creation & netlist import
Component placement & routing
Quality assurance & DFM review
Gerber file generation
From concept to manufacturing-ready PCB – we deliver reliability and performance.

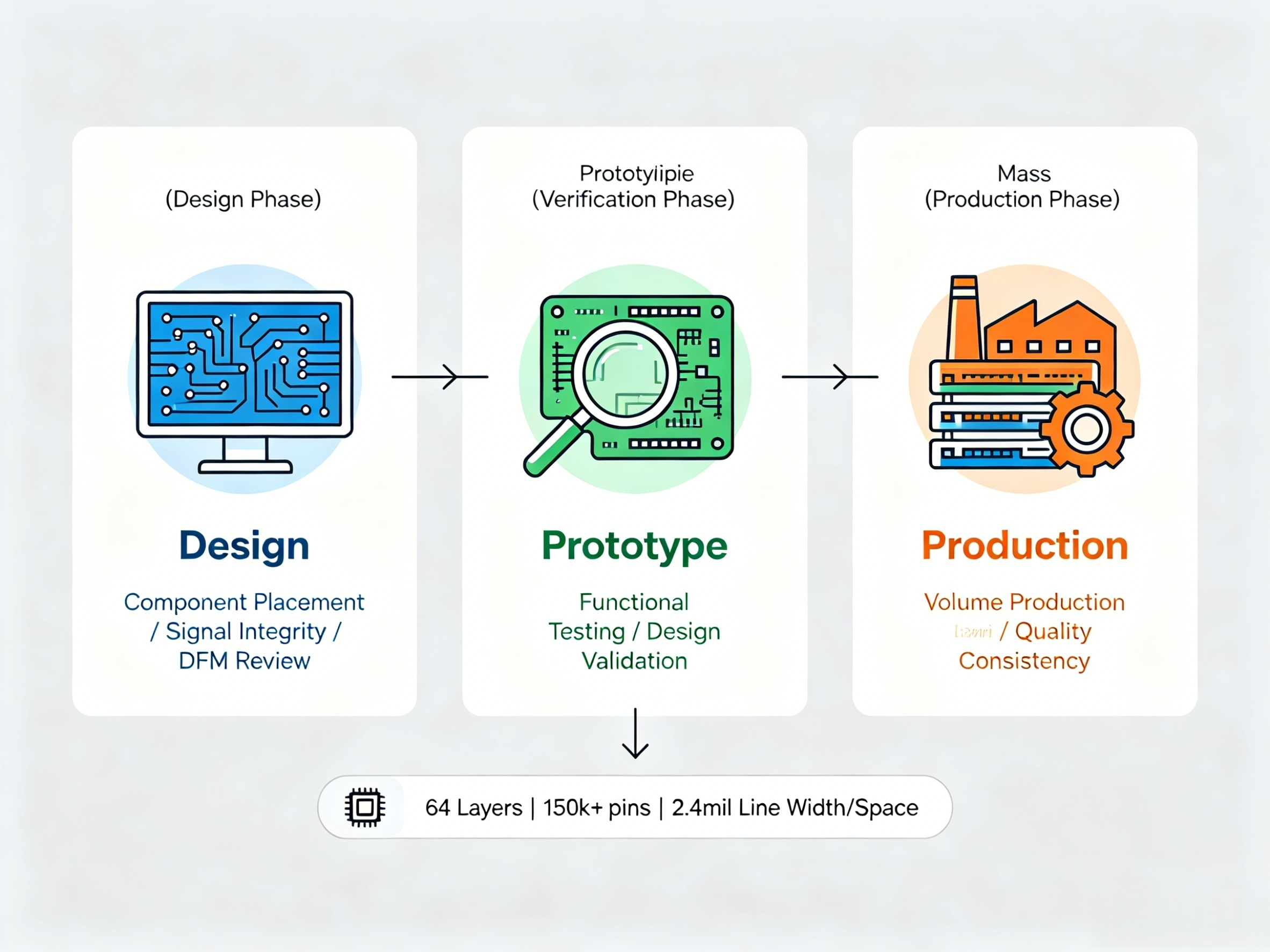

Quality Assurance – From Prototype to Production
Design Expertise

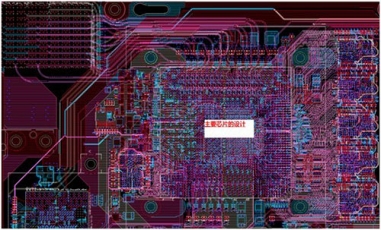

Using advanced EDA tools and experienced engineers, we create detailed, efficient PCB layouts – optimizing component placement, trace routing, and signal integrity.
Prototype Fabrication
Before mass production, we build and test prototypes to validate design performance and functionality.
Full‑Scale Production
After prototype approval, we scale to any volume while maintaining consistent quality.
Technical Capabilities
Max. layers: 64
Max. pin count: 150,000+
Max. connections: 120+
Min. line width / spacing: 2.4 mil
Processor Support List
| Brand | Series / Models |
|---|---|
| Phytium | FT-S5000/2500/2000/1500, D3000 |
| ShenWei | 3232/3231/1621/1631/421 |
| Loongson | 1/2/3 Series |
| Rockchip | RK35/33/32/31/30/18 Series |
| HiSilicon | Hi31/35/37 Series |
| Cambricon | C10, MLU 220/290/370 |
| Zhaoxin | KX-5000/6000/7000 |
| Hygon | 5000/7000 Series |
| Intel | Purley, Ivy Bridge, Sandy Bridge, Whitley, Eagle Stream, Alder Lake, Raptor Lake, Arrow Lake, Lunar Lake |
| AMD | FP3/5/6/7/8, SP3/5 |
| Marvell | PXA920/920H, ARMADA 1000/1500 |
| Qualcomm | MSM86XX/82XX/76XX |
| Spreadtrum | SC9610/8810/6820/8380XP |
| MediaTek | MT6573/6575/6577/6589 |
| NXP PowerPC | MPC8541/8548/8555/8641, P2020 |
| Texas Instruments | AM35X/38X/335X/437X, OMAP4430, C667X |
FPGA/CPLD Supported Families
| Brand | Series / Models |
|---|---|
| AMD Xilinx | Spartan‑6/7, Artix‑7, Kintex‑7, Virtex‑5/7, Zynq‑7, Virtex UltraScale, Versal |
| Intel (Altera) | Stratix (S10), Arria (A10), Cyclone, MAX, 1SG280, NF43 |
| Cavium | CN6XXX/7XXX/8XXX/9XXX, NITROX III/PX, CN50XX |
| Lattice | MachXO2/3, ECP3, iCE40 |
Power Modules & PMIC Support
| Brand | Series / Models |
|---|---|
| Texas Instruments | TPS62/65/75/82/54/40XXX, LM51/50XXX, PTH0XXX, BQ25/24XXX |
| Analog Devices | LTM46/80XX |
| Maxim Integrated | MAX8698, MAX8903A |
| Intel | EM2140P01QI |
| Renesas | ISL91302B, ISL91301A/B, ISL91401, ISL9227 |
| MPS | MPM26/35/36/38/54XX, MEZD41XXX |
Conversion & Interface IC Support
| Brand | Series / Models |
|---|---|
| Broadcom | BCM56334/56331/56960/56980/56990, BCM84793/8129/88370/88470, NLA122048 |
| Analog Devices | AD5767/4001/9776/9779, AD9788/8370/8012, ADE9000, ADAQ7980/7988 |
| Texas Instruments | ADS8860/8861/54J60, ADC32RF45/3244/8775, ADC39J84/80004, DAC5681/DAC3282 |
| Marvell | 88E6083/1111/8070/8059, 88DE2750 |
| PMC (Microchip) | PM5440/5990/80XX |
| ClariPhy | Cli20010 |
| Naphos | Np8579, NP8369, NPS400 |
Memory Chip Support
| Brand | Types / Models |
|---|---|
| Samsung | DDR3/4/5, GDDR5/6, LPDDR4/4X/5/5X |
| SK Hynix | DDR2/3/4/5, GDDR5/6, LPDDR4/4X/5/5X |
| Elpida | DDR2/3 |
| Micron | DDR3/4/5, GDDR5/6, LPDDR4/4X/5/5X |
| Cypress | CY7C1510, CY7C1565, CY7C25XX |
| CXMT | DDR3/4/5, LPDDR4/4X/5 |
Why Choose Us
High Precision – Accurate PCB layouts with advanced tools and engineering.
Cost‑Effective – Competitive pricing, uncompromised quality.
Reliable Support – Technical help and design modifications.
Service Process
Custom Solutions – Single‑layer to complex multi‑layer designs.
Quick Turnaround – Fast lead times for prototypes & production.
Strict Quality – Hundreds of checklists across layout, routing, thermal, structure.
